Trimming sidewalls

Posted: Sat Jan 24, 2009 9:47 pm
by Head Monkey
I was talking with doughboyshredder about this today, and I thought others might find it helpful. Every now and then I see people wondering how to trim their sidewalls, looking for special beveled bits, setting up complicated router table setups, etc. I find the simplest method is a laminate trimmer with an adjustable tilting base and a standard straight bit with a bearing at the top. I use one from Porter Cable with a tilt base: product id 11108. With this I can set whatever bevel angle I want, and it's pretty easy to run it along the base without tilting it. Plus, it's good for other things around the shop.

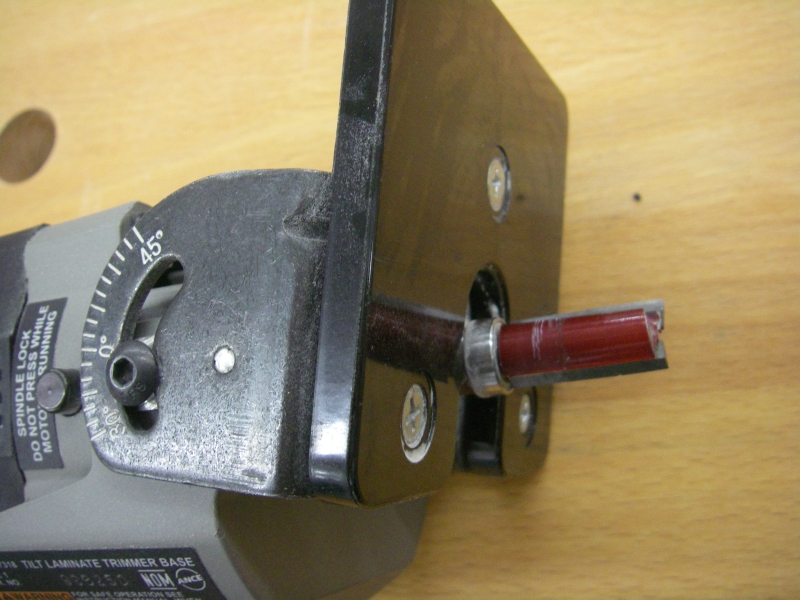

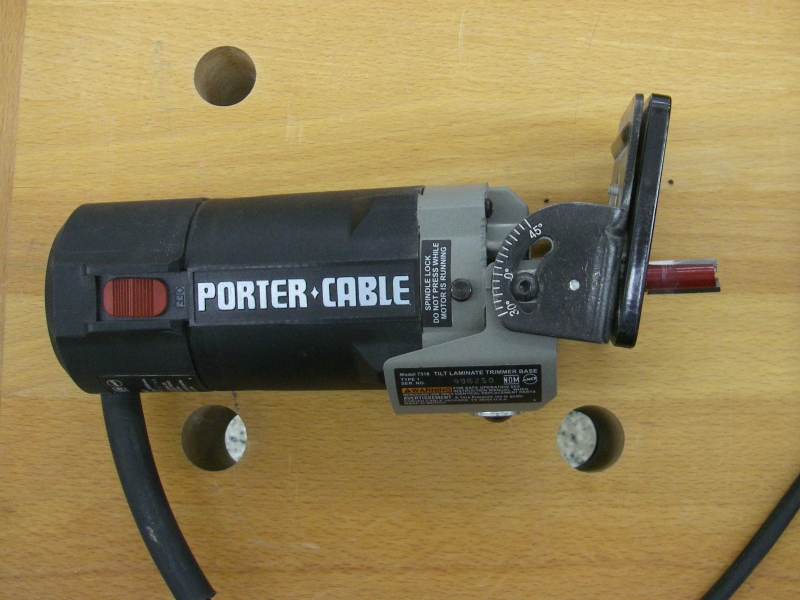

Here are some pics of the method:




Posted: Sun Jan 25, 2009 5:39 pm
by SRP
Thanks for the tip!! That looks like a great way to go. Now I have another excuse to buy another tool.

Posted: Sun Jan 25, 2009 5:39 pm
by SRP
Thanks for the tip!! That looks like a great way to go. Now I have another excuse to buy another tool.

Posted: Mon Jan 26, 2009 12:41 am
by bigKam
Mike, this is excellent and thank you so much for sharing the info! I can always use another tool.
